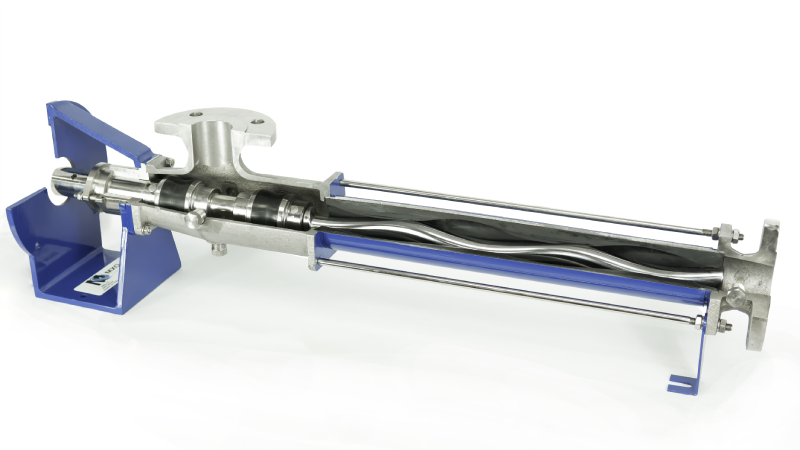

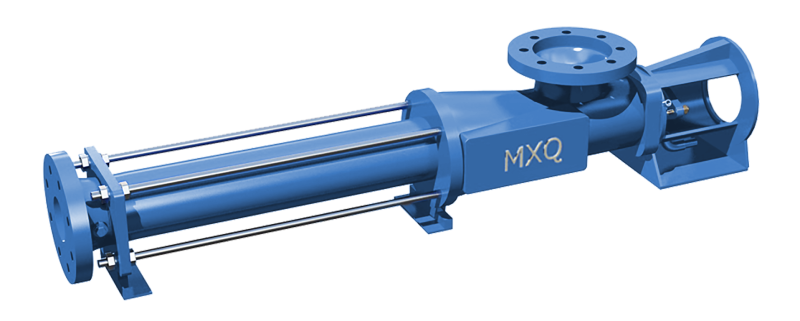

The EL close-coupled pumps are shorter in length, compared to the EH pumps. In the close-coupled design the pump shaft bypasses the use of a bearing housing and connects directly to the driver. This design not only eliminates the need for a base plate, but is also much more space efficient. These pumps are suitable for neutral or aggressive media, with thin or high viscosity. The EL models come in 1 stage (90 PSI) and 2-stage (180 PSI) variants. They have a capacity up to 350 GPM, and differential pressures up to 180 PSI.
The EL close-coupled pumps are shorter in length, compared to the EH pumps. In the close-coupled design the pump shaft bypasses the use of a bearing housing and connects directly to the driver.
EL Close Coupled Pumps Performance:
EL Close Coupled Pumps Applications:
